H3C Data Center Switches

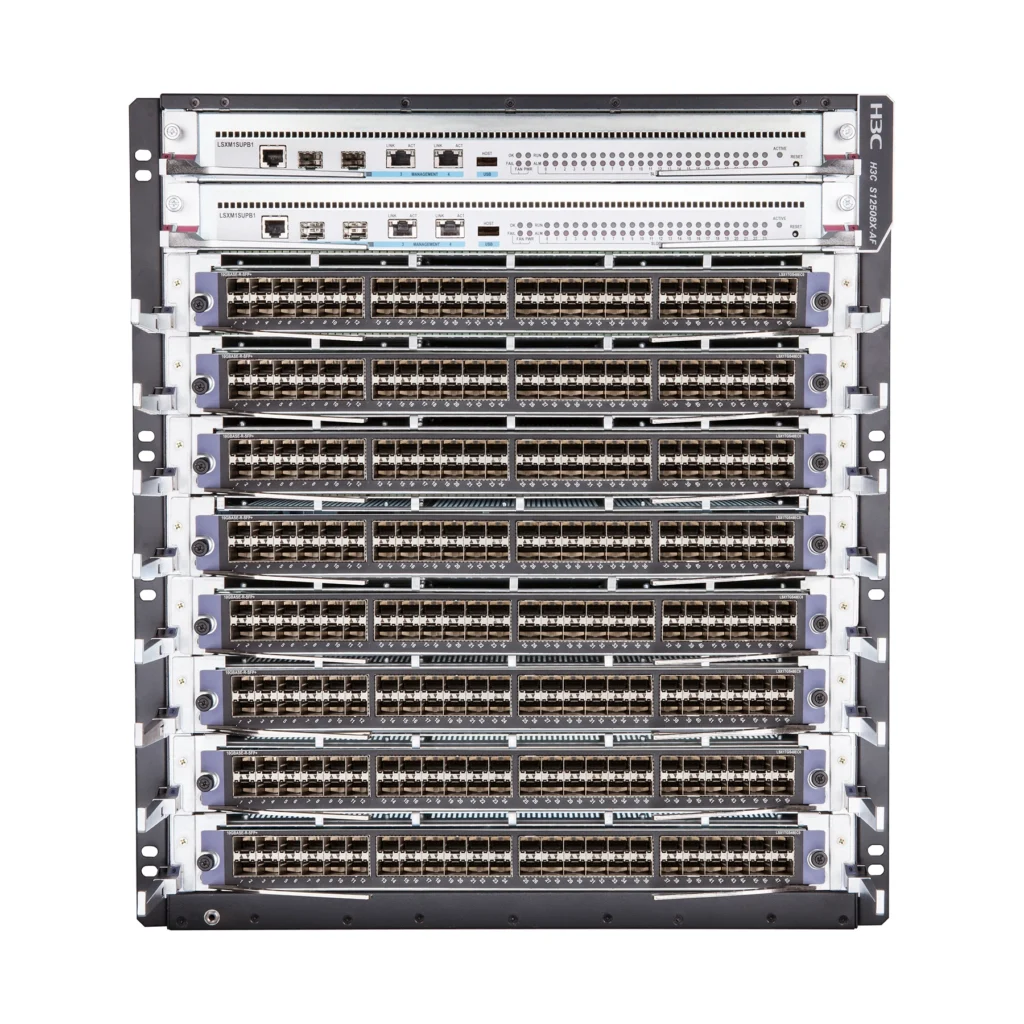

H3C S12500X-AF Data Center Cloud Core Series Switches
The H3C S12500X-AF DataCenter Cloud Core Switch Series is designed for cloud services data centers. It provides the following features:
CLOS+ multi-grade multi-plane architecture
With 768 line-speed 40G/100G interface per chassis and up to 9.6Tbps switch capacity per slot
Integration of IRF2 (Intelligent Resilient Framework version 2), and MDC (Multi-tenant Device Context) to implement virtual resource pools
Distributed ingress buffers (200 ms) to accommodate burst traffic in data centers
Independent control, detection, and maintenance engines to implement 50ms failover and powerful control capabilities
The S12500X-AF switch series includes S12504X-AF, 12508X-AF and S12516X-AF, which meet various port density and performance requirements. The S12500X-AF switch series can work with H3C routers, switches, security devices, IMC, and H3Cloud to provide a wide variety solutions

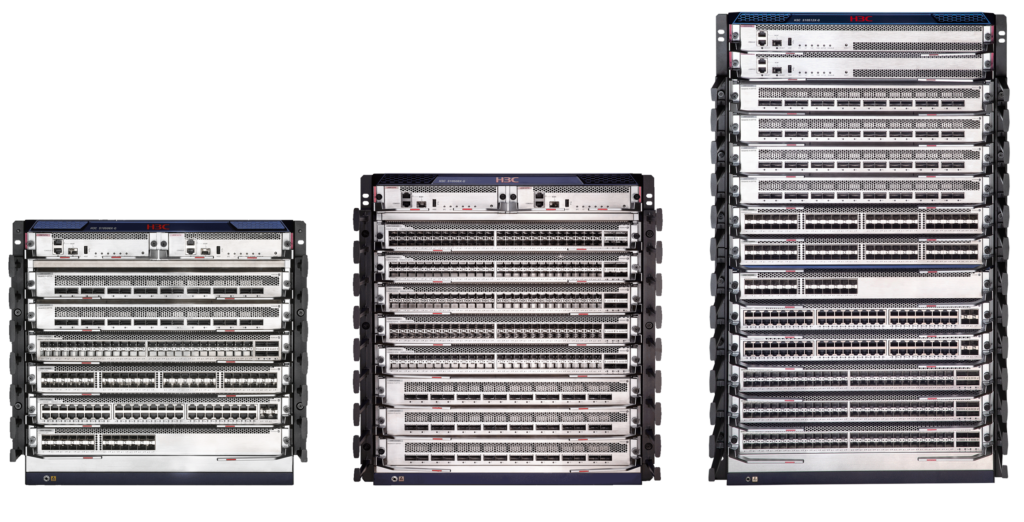

H3C S10500X-G Series Next Generation Core Switch
H3C S10500X-G is a high-end Switch series designed for the core layer in intelligent Campuses and Data Centers. Powered by the H3C COMWARE 7 network operating system, the S10500X-G offers a comprehensive set of features tailored to both campus and data center environments, providing a secure and flexible platform for diverse types of network traffic. Architecturally, the S10500X-G adopts an industry-leading orthogonal CLOS+ forwarding architecture, ensuring long-term networking capabilities, making S10500X-G capable of building a high-performance network for years to come. In terms of services, with PoE++ capability, EERN (Enhanced Ethernet Ring Network) technology, and a variety of GE/10GE/25GE/40GE/100GE/400GE cards, along with wireless AC module, S10500X-G provides complete solutions for a wide range of scenarios. To ensure the network operating continuity, the S10500X-G delivers carrier-grade reliability, features redundant designs across key components including the Engine units (MPU), Switch Fabric units, fan trays, and power supply modules. Additionally, the S10500X-G embraces a Green and environmentally friendly design philosophy, with intelligent cooling system and reduced power consumption to promote energy efficiency.

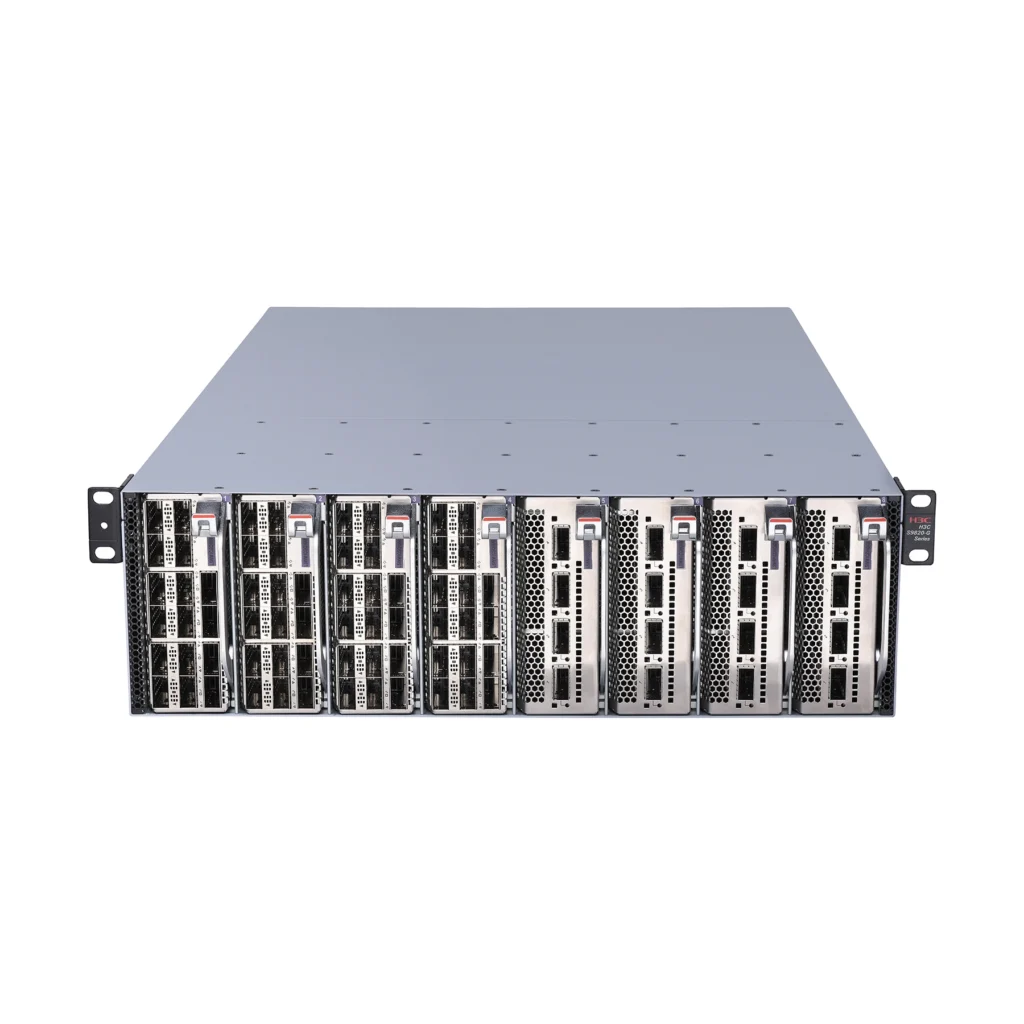

H3C S9820-8C-G Data Center Switches
H3C S9820 series switches are a new generation of high-performance, high-density 400GE/200GE/100GE Ethernet switches launched by H3C for data centers. These switches provide high density 400GE/200GE/100GE ports; supports redundant pluggable power supplies and fans, and the fan direction can be flexibly adjusted. S9820s can be used for next-generation data center core.
S9820s can also connect to S12500 core switches through 400GE uplinks and 100GE switches in downlinks, providing high-bandwidth and large-capacity server access.
